The following system recommendations are based on experiences with:
• Customers
• In-house testing
• Data provided by Microsoft
This recommendation is based on these experiences to make it as realistic as possible. However, parameters like available network bandwidth, hardware manufacturer and your specific workflow cannot be considered.
Note:
All recommendations are based on commercial PC's or servers, e.g. the following recommendations for hard disks are higher than needed to start with, especially in virtualized environments!
Recommended PC-Client System and stand-alone systems
Follow this link for the recommended PC Client and stand-alone systems
Recommended Server Systems for Engineering Base. For use as EB Application Server / SQL Server
Recommended System for 1 to 10 Users
|
Processor |
Intel Xeon Silver 4214 2.2G, 12C/24T, 9.6GT/s, 16.5M Cache or better |
|
RAM |
24 GB or more |
|
Hard disk |
SSDs are recommended 2 x 150 GB or more (for the system) 4 x 300 GB or more (database) |
|
Operating System |
|
Recommended Server Systems for Engineering Base. For use as EB Application Server / SQL Server
Recommended System for 10 to 20 Users
| Processor | Intel® Xeon® Gold 5217 3.0G, 8C/16T, 10.4GT/s, 11M Cache or better |
| RAM |
48 GB or more |
| Hard disk |
SSDs are recommended 2 x 300 GB or more (for the system) 4 x 500 GB or more (database) |
| Operating System |
|

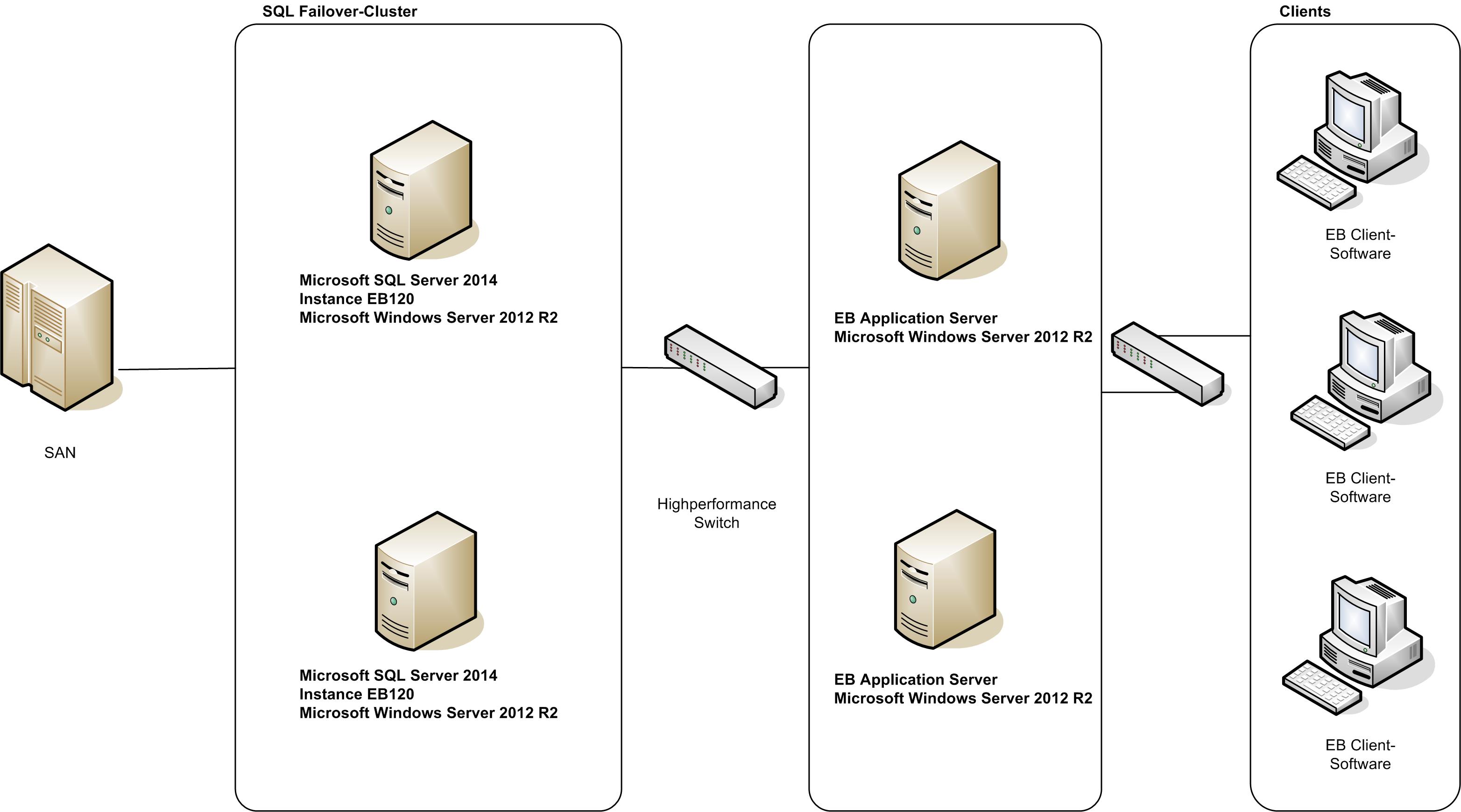

Possible Scenario for more than 20 users
To use Engineering Base with a high number of users (> 20) you are able to increase the performance, the data security and the availability by working with a 3 layer model. To make a realistic recommendation for this size of server please contact AUCOTEC.
|
SQL-Server |
EB-Application server |
EB-Clients |
This is an example of the scalability of Engineering Base.
