5               Placing

Use the placing function to integrate the functions of a transfer project into a target project. A new project with the suffix "Placing" in the name is automatically created.

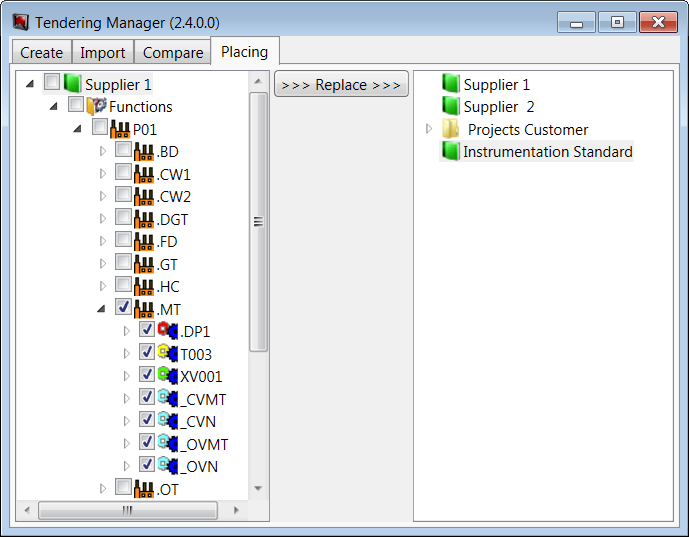

The placing window is subdivided into three parts.

·            On the left hand-side you can select the functions of the transfer project.

·            The center contains the Replace button that starts the function. The button is activated if at least one function is marked in the transferred project and a target project is defined.

·            On the right-hand side you can define the target project where the functions are to be integrated.
