1.2           Assigning Protection Material

1.      Open the sheet of your choice in Visio.

2.      Mark one or several segments in the graphic.

3.      Use the context menu to select Protection Wizard, or select it in the Assistant selection dialog.

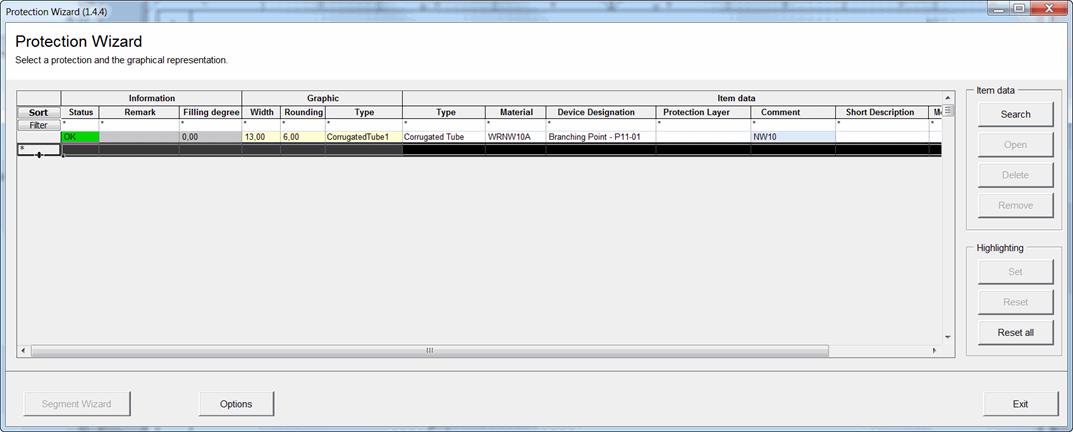

The Protection Wizard is opened.

4.      Click on Search to select the protection material of your choice from the catalog.

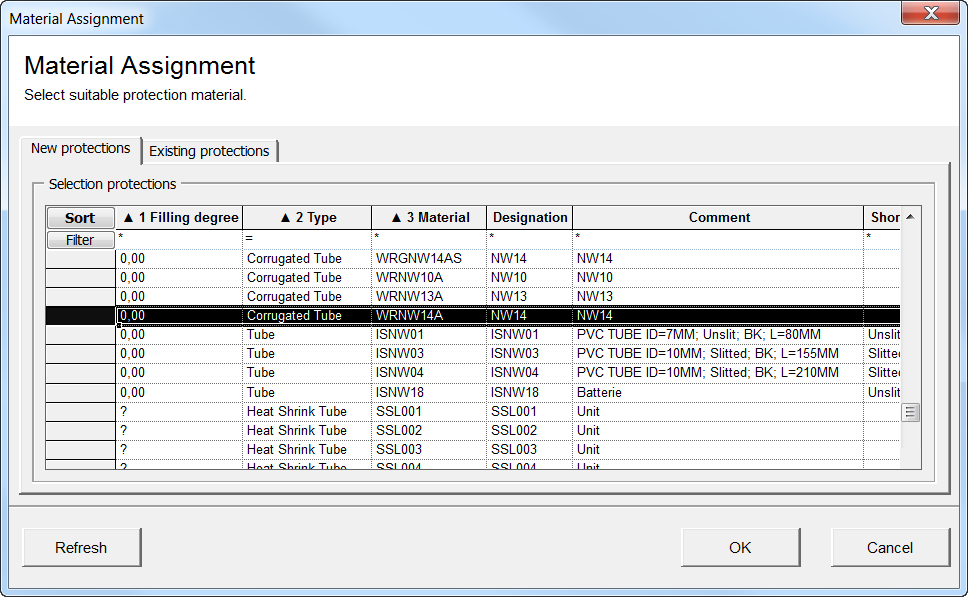

The Material assignment dialog is opened.

5.    Select the desired protection material and confirm your selection with OK.

The selected protection material is displayed with the predefined line in the Protection Wizard and in the graphic and is stored as object in the Equipment folder as a function of the selected option.
