3.2 Options
To create the equipment diagram, the symbols will be searched according to their names and filter criteria.

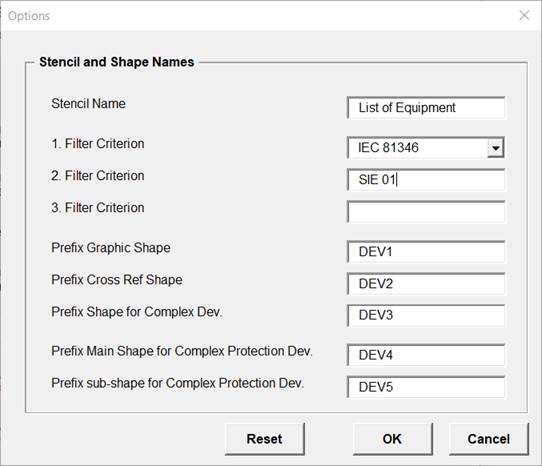

The options dialog can be used to specify the standard names for the stencils and the various symbols.
Besides the name, a selection of symbols is possible based on the content of the attribute Standard. For that purpose, enter the favored values into the input fields 1. Filter Criterion to 3. Filter Criterion.
The entry field 1. Filter Criterion is initialized with the values DIN 40719 or IEC 81346. Use the arrow key to open the selection menu. However, you can also enter your own filter criterion.
First, the symbol will be searched containing besides the fitting name in attribute Standard the value of the 1. Filter Criterion. If this symbol is not found, then the symbol will be searched containing in Standard the value of the 2. Filter Criterion. If even then no symbol is found, then a symbol will be searched with a match between Standard and the 3. Filter Criterion.
If there should be no defined preferred master shapes, then the standard stencils will be searched for matching symbols.
|
|
The symbols with their diverse attribute values in attribute Standard have to be associated with their objects as preferred master shapes. |
|
|
The input of 1. Filter Criterion to 3. Filter Criterion have to exactly agree with the input in the attribute Standard. |
Changed values are stored in the registry and again offered with another run.
The Reset button can be used to delete all entries in the input fields 1. Filter Criterion to 3. Filter Criterion.
