5.3.3                   The Terminal Types

The terminal type table lists all types used for this terminal block. The terminal type most frequently present in the block is listed at the top of the table after the text Standard. All other terminal types then follow according to their positions in the block.

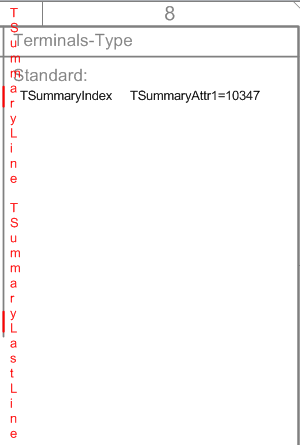

The figure on the left shows the display after calling the assistant, all elements are on the same Y coordinate. The figure on the right shows the beginning and the end of the line to clarify the information contained in each line. This table is limited by TSummaryLastLine, once this marker is reached there is a page change.

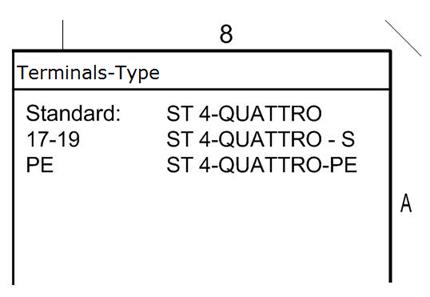

Example: filled table

Changing the display of the standard terminal type

Terminal Summary Options

·            = 1: The predefined standard terminal (attribute Standard Terminal Type at the terminal block) is used as the standard terminal type. If this attribute is not set, the terminal most used terminal is displayed as the standard terminal type.

·            = 0: The terminal most used is entered as standard terminal type.
