2.3.3                   Channel Structure

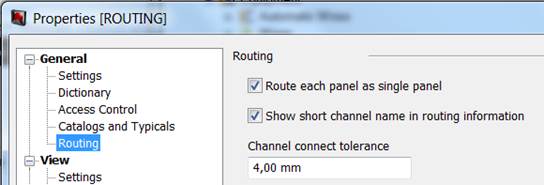

To create a closed channel system the cable ducts will be arranged graphically in the way that the transition points abut. A tolerance is permitted. The maximum permitted value (default 4.00 mm) can be defined in the project settings. The drawing scale is used for calculating the maximum distance, i.e. at a scale of 1:10 and 4.00 mm tolerance, the maximum distance is 40 mm.

For monitoring all detected transfer/connection points of the cable ducts are marked with blue circles in the layout diagram.

It is impossible to route single cable ducts, a channel framework is required.
