2.3.1                   Mounting Plate

·            Mounting plates have to be specified by the type Mounting Plate.

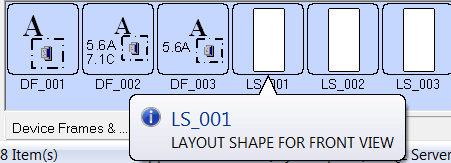

·            For the graphical representation of mounting plates the standard shape “LS_001” (front view) should be used preferably. It is displayed as a rectangle and automatically resized depending on the default values of Width, Height and Depth.

The attributes of mounting plates have the following meaning:

·            In the tab Specifications of the object’s properties the attributes Width, Height and Depth should always be assigned with correct values.
