1.18         Creating a new Terminal Block

For the terminals, we need to create a new terminal block first.

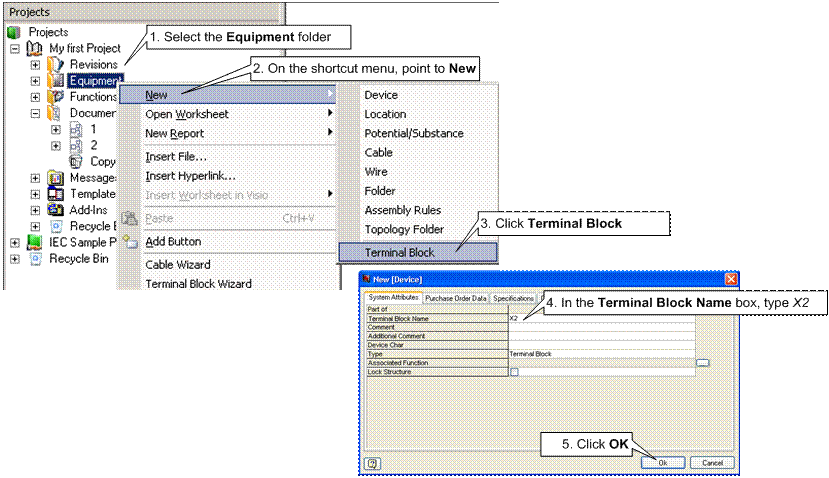

To create a new terminal block

1.     In the Engineering Base Explorer, select Equipment.

2.     On the shortcut menu, click New, then Terminal Block.

3.     This opens the New [Terminal Block] dialog.

4.     In the Terminal Block Name box, type X2, and then click OK.

5.     This creates the terminal block X2.

Exercise:

Create – as described above – the new terminal block X2 under Equipment and +C1 in the project.
