The sheet parameters are stored together with the sheet. If you copy the sheet into the project folder Templates / Sheets / Favorites, then it is available with all of its settings for future sheets.
Figure 460 Setting sheet parameters MS Visio 2010
14.1.2 Setting sheet parameters in Visio 2010
Set the following sheet parameters:

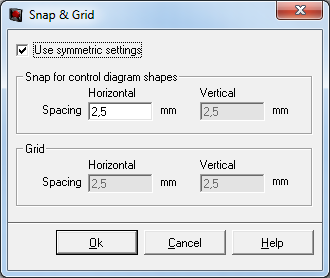

1. Specify the grid spacing in the menu bar Engineering Base / Auto Align & Space.

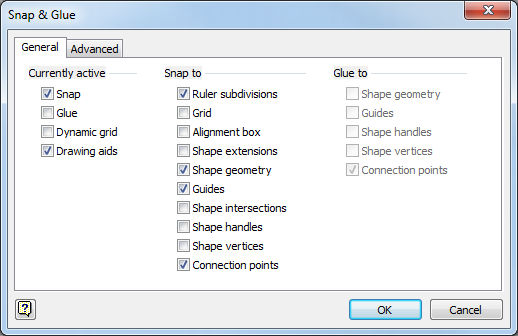

2. Activate the Grid in the menu bar View / Visual Support / dialog Snap & Glue.

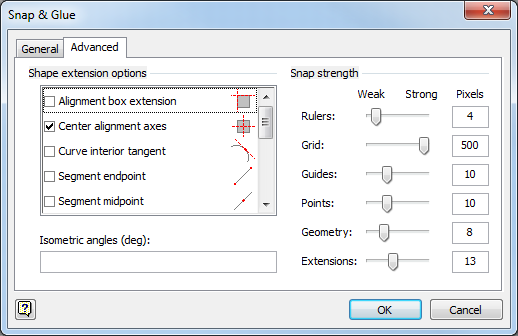

3. In the tab Advanced, set the Snap strength for the grid.
|
|
The sheet parameters are stored together with the sheet. If you copy the sheet into the project folder Templates / Sheets / Favorites, then it is available with all of its settings for future sheets. |
|
|
Figure 460 Setting sheet parameters MS Visio 2010 |
|
|
