2.22 Extensions of the Electrologic Import (EB 6.8.0)
|
You need one of the licenses listed below: |
EB Cable Pro EB Cable Logic EB Cable Harness Design EB Cable Logic VOBES Cable Manufacturing |
|
Contained in the following business solutions: |
System Engineering Harness Design Automotive Harness Design |
With the wizard Electrologic Import, you can import electrologic into a project. For the import you need files containing data from a pin potential list or a connection list.

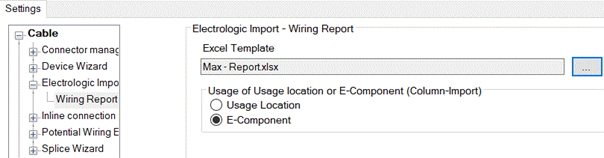

Up to now objects could only be imported if they were stored in the Engineering Base explorer under usage locations. Now you can also import objects located anywhere in the system folder Equipment after the import and especially also those located under units. You activate this new functionality in the Macro Settings in the category Electrologic Import – Wiring Report. The use of usage locations is the default setting.
|
|
Via the button |
for the
